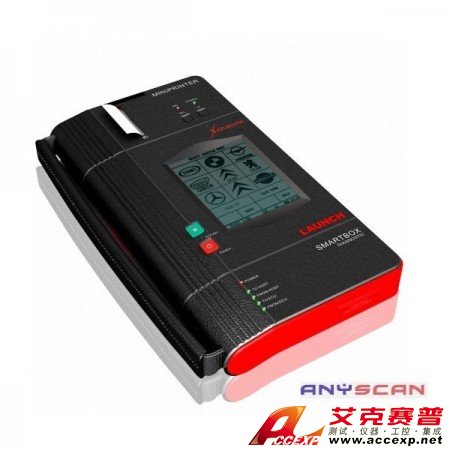

Launch X431 Master 汽車檢測儀
名稱：汽車測試儀
品牌：
型號：
簡介：Launch X431 Master 汽車檢測儀的詳細說明： Launch X431 Master is a new development of the best selling X431 scan tool. It has acquir...
申請服務
- 產品介紹
Launch X431 Master 汽車檢測儀的詳細說明：
Launch X431 Master is a new development of the best selling X431 scan tool. It has acquired all the diagnostic function of the X431, with a number of improvements. An all new integrated structure, allows faster software download times, speeding up ECU communication and providing enhanced software security.Its new platform represents the highest level of diagnostic Port/Parallel port technology.Functions available include reading and erase DTC’s, read data stream digitally and by waveform, component actuations, ECU coding, and other advanced functions.
Product Description:
Update free by internet for one year.
X431 master is a new generation of product developed by Launch Tech. It's a perfect marriage between automotive electronic technology and information networking. X431 adopts open diagnostic technology, which is the most advanced in the world as well as the future of automotive diagnosis. It carries PDA functions apart from reading trouble code, data stream and actuation test, sensor waveform and digital code control.
Characters:
1. To interface with computer with X431-PCLINK (optional) to store test data in vehicle service record;
2. To simulate and test sensors with the help of sensorbox (optional);
3. To test the parameters of the battery and conduct analysis on battery conditions through batterybox (optional);
4. To print out test data any time with built-in printer;
5. Easy operation through handwriting input on large touch screen;
6. As generic diagnostic equipment, it can interface with diagnostic adaptors of all vehicles models in the world;
7. Strong test capacity to cover all electronic systems;
8. Unique reading of date stream to ensure fast date updating;
9. Strong waveform display to monitor any change in the data stream;
10. Embedded operation system and open-platform diagnosis to make effective diagnosis possible;
11. Integrated adaptors featuring compact design and reliability;
12. Complete after-sales service system to give life-long service;
13. Multi-language choices and easy update via the Internet.
One 16 pin connector is now used to communicate with all with background light cars fitted with a standard J1962 OBD connector.
The X-431 Master has 24V operating capability enabling it to work with different input voltages, whilst providing unit protection from unexpected voltage surges.
An integrated thermal printer allows instant printing of all on–screen content, including the dynamic live date stream, and ECU identification.
The X-431 Master diagnostic kit will help your business grow by providing straight forward, ready diagnostics over a broad range of systems for most of cars found on UK roads.
Frequently updated software makes X-431 Master an essential investment for professional workshops.
Parameter:
Operation System: Linux
CPU: 32-bit processor
CF card: 128M
Interface: Standard serial/ parallel port
Power: DC12V
Output: Approx. 9W
Printer: Mini thermo printer
Printer interface: Standard parallel port
Screen: 240*320 LCD touch screen with backlight
Structure: main units, Smartbox and mini printer
Applicable cars:
ALFA-ROMEO, AUDI, BMW, CHRYSLER, CITROEN, DAEWOO, DEMO EOBD2CAN FIAT, EUROFORD, FORD (USA), HONDA, HYUNDAI, KIA, LANCIA, LANDROVER, MAZDA,
MERCEDES-BENZ, MITSUBISHI, NISSAN, OBD2 & EOBD OPEL, PEUGEOT, PORSCHE, RENAULT, ROVER, SAAB, SEAT, SKODA, SMART, SSANGYONG, SUBARU, SUZUKI,
TOYOTA, Transporter & V-Class VOLVO, VW.
