Agilent 89601B-200 基本向量信號分析儀
名稱：網絡分析測試儀
品牌：
型號：
簡介：89601B-200 Basic Vector Signal Analysis, Transportable License基本向量信號分析儀 主要特性與技術指標 Traces: 20, simultaneous, arbitrary si...
申請服務
- 產品介紹
89601B-200 Basic Vector Signal Analysis, Transportable License基本向量信號分析儀
主要特性與技術指標 •Traces: 20, simultaneous, arbitrary size, shape, and measurement assignment
•Markers: 20 per trace, normal, delta and fixed; specialty include ACP, OBW
•Calibrated FFT points: 51 to 409,601
•Units: Log Mag, Linear Mag, Real(I), Imag(Q), Phase, Constellation, Trellis, I/Q-Eye
•Triggering: Level, ±Slope, Hold-Off, Delay, External/Internal/Channel, Periodic
•Transportable license: resides on your PC/instrument, can be transported to another PC/instrument at any time
•Also available as a Floating license: shared on a network server to be accessed by multiple users, one at a time
描述

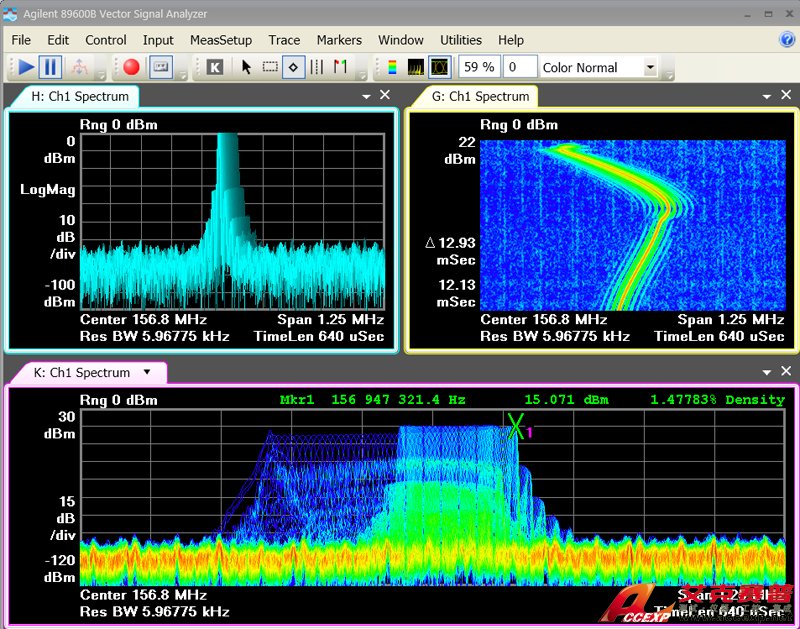

The 89600 VSA software is your window into what’s happening inside complex wireless devices. Option 200, a required option, provides one of the most complete sets of the time, frequency, and amplitude domain analysis tools available. Features include:
•On-trace parameter control – click on the trace labels to change center frequency, span, RBW, etc
•Assign any measurement to any trace – display multiple spectrums for MIMO measurements
•Advanced vector spectrum, time and amplitude analysis tools
•Multi-channel ready
